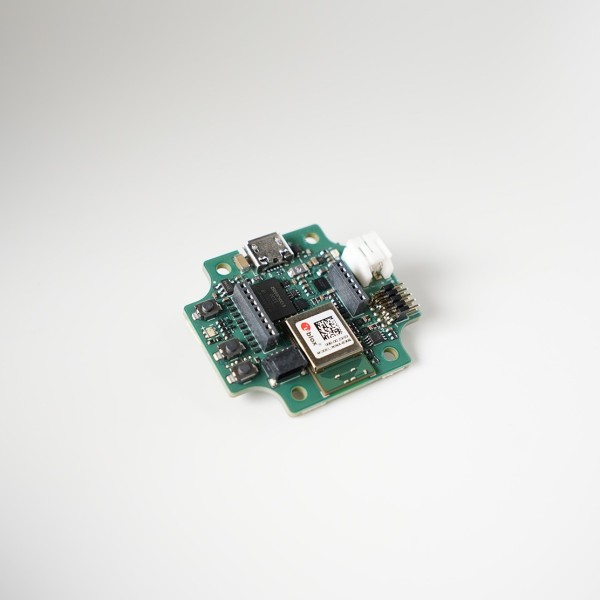

Application Board 3.1

Sensor evaluation board.

Application Board 3.1

Sensor evaluation board.

The application board 3.1 is a versatile and sensor independent development platform, enabling a fast and easy experience with Bosch Sensortec’s sensors. As shuttle boards 3.0, a wide variety of Bosch Sensortec’s sensors can be plugged into the application board’s shuttle board socket. The combination of the application board 3.1 and shuttle board 3.0 can be used to evaluate the sensors and build prototypes to test use cases.

Small form factor design

Scalable solution

Wireless connectivity BLE support

Technical data

Parameter	Technical data
Parameter Dimensions	Technical data Length 33 mm x Width 38 mm x Height 6 mm
Parameter Supply voltage	Technical data 5V DC USB, 3.7V Li-ion Battery
Parameter Memory capacity (user data memory)	Technical data 256 KB RAM, 1MB internal flash, 2Gb external flash
Parameter Communication	Technical data BLE 5.0 / USB 2.0
Parameter Bluetooth Low energy frequency band	Technical data 2.4GHz, 40 channels
Parameter Typical conducted output power	Technical data +0 dBm
Parameter Radiated output power (EIRP)	Technical data +2 dBm
