Smart sensor: BHI260AP

Artificial Intelligence. Position tracking. Sport analytics.

Order now

BHI260AP

Self-learning AI smart sensor with integrated IMU

The BHI260AP provides an ideal all-in-one solution for always-on sensor applications such as fitness tracking, pedestrian positioning, machine learning analytics and orientation estimation. BHI260AP is a smart sensor that includes a wide variety of software functionalities, a 32-bit customer programmable microcontroller, and a 6-axis IMU all in one package.

Technical data

Parameter Technical data
Parameter
Operating voltage
Technical data
1.8 V
Parameter
CPU current consumption
  • Self-learning AI function (25 Hz)
  • Self-learning AI function (50 Hz)
  • Standby current
 Technical data


249 µA

386 µA

8 µA
Parameter
Performance
  • Self-learning AI Software
    New activity Learning Time /
    Personalization time
  • Typical Recognition rate (F1 score) personalized to individuals
 Technical data


< 30 secs



0.95~1.0

Order

Product will be available soon

RUTRONIK
Out of stock Click here to order
FUTURE
Out of stock Click here to order
ARROW
Out of stock Click here to order
MOUSER
Out of stock Click here to order
DIGIKEY
Out of stock Click here to order

Documents

Flyer
BST-BHI260AP-FL000
Datasheet
BST-BHI260AP-DS000
Shuttle board flyer
BST-BHI260AP-SF000
Shipment & packaging details
BST-BHI260-SP000
Handling, soldering & mounting instructions
BST-MHS-HS000
Evaluation Setup Guide
BST-BHI260AB-AN001
SDK Quick Start Guide
BST-BHI260AB-AN000
Programmer's Manual
BST-BHI260AB-AN002
Application note: BSX sensor fusion for smart sensor systems
BST-BHI260_BHI360-AN002

Software

Driver
BHI260AP API
Tutorial: BHI260AP
Software Development Kit Installation
SDK for BHI260AP (with BSX)
SDK v1.1.8.0
Firmware for BHI260AP (with BSX)
FW v1.1.8.0

White paper

White paper: Me, myself and AI
White paper: Swim like a fish with Artificial Intelligence

Applications and solutions

Woman doing sports using hearables and smartwatch

Wearables & hearables

Smartwatches, wristbands, smart clothes and hearables: whether supporting your fitness through calorie counting or helping you orient yourself through navigation, our accurate and ultra-low power sensing solutions turn a regular wearable into your daily companion!

Find out more

Other smart sensors

BHA260AB

BHA260AB

The BHA260AB is a family of ultra-low power smart hubs consisting of Bosch Sensortec’s programmable 32-bit microcontroller (Fuser2), a state-of-the-art 3-axis accelerometer and a powerful software framework containing pre-installed sensor fusion and other sensor processing software.
More information
CGI of Bosch Sensortec's smart sensor BHI360

BHI360

BHI360 is a highly integrated, ultra-low power, smart 6-axis IMU consisting of a 32-bit programmable microcontroller. In addition, it consists of an ultra-low power microprocessor, including pre-installed sensor fusion software and algorithms in a single package.
More information

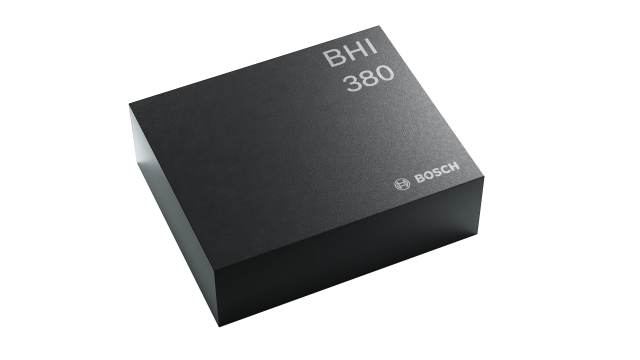

BHI380

BHI380

BHI380 is a highly integrated, ultra-low power, smart 6-axis IMU consisting of a 32-bit programmable microcontroller with integrated AI software. In addition, it consists of an ultra-low power microprocessor, including pre-installed sensor fusion software and algorithms in a single package.
More information
